The WFXV5030 is a Reciprocating Diamond Wire machine in the Prominer CNC Single Wire Saw family. A single diamond wire – endless loop or reciprocating – for cropping, sampling and custom cuts on any hard, brittle material. With unmatched changeover flexibility for job shops, R&D labs and multi-material plants, the Single Wire Saw is the most versatile machine in the family. Benchtop (ESV-series) configurations cover laboratory sample preparation down to ultra-fine wire.
Thinnest cut
Cut thickness <0.2 mm; surface roughness <1 um, no blade marks.
High wire speed
Up to 80 m/s with manual to closed-loop servo tension control.
Maximum flexibility
Quick material and size changeover – ideal for multiple materials.
Free sample test
Run a free cutting trial on your actual material before ordering.
Technical Specifications — WFXV5030
| Maximum Workpiece Length (mm) | 500 |
|---|---|
| Maximum Workpiece Width (mm) | 500 |
| Maximum Workpiece Height (mm) | 300 |
| Maximum Cutting Weight (kg) | 75 |
| Table Width (mm) | 500 |
| Y-axis Stroke (mm) | 500 |
| Z-axis Stroke (mm) | 300 |
| Y-axis Resolution (mm) | 0.001 |
| Z-axis Resolution (mm) | 0.001 |
| Y-axis Repeat Positioning Accuracy (mm) | 0.01 |
| Z-axis Repeat Positioning Accuracy (mm) | 0.01 |
| Wire Tensioning Method | Pneumatic |
| Diamond Wire Diameter (mm) | 0.25~0.45 |
| Guide Wheel Specification | Ø125 |
| Wire Drum Specification | Ø150×260mm×0.55kW |
| Rated Voltage | AC 380V 50Hz |
| Total Machine Power Consumption (kW) | 4 |
| Equipment Overall Dimensions (mm) | Approximately 1700×1450×1800 |
| Total Machine Weight (kg) | Approximately 1200 |
| Model | WFXV5030 |
| Configuration | Reciprocating Diamond Wire |
Main Components (BOM)
| Bed/Carriage | Precision steel structure | Prominer CNC | Set | 1 |
|---|---|---|---|---|
| Work Table | Steel | Prominer CNC | Set | 1 |
| Wire Frame | Precision steel structure | Prominer CNC | Set | 1 |
| Filter Water Tank | Stainless steel sheet metal | Prominer CNC | Set | 1 |
| Protective Cover | Precision sheet metal | Prominer CNC | Set | 1 |
| Linear Guide Rail Kit | Linear guide rail | Domestic | Set | 4 |
| Precision Screw Kit | Ball screw | Domestic | Set | 2 |
| Guide Wheel Bearing Housing Kit | Bearing housing assembly | Prominer CNC | Set | 4 |
| Guide Wheel Bearing | Precision bearing | NSK or SKF | Piece | 8 |
| Pneumatic Components | Cylinder/solenoid valve/pressure regulator/manual valve, etc. | Airtech/equivalent brand | Batch | 1 |
| PLC and Expansion Module | Programmable logic controller | Mitsubishi/Inovance or equivalent | Set | 1 |
| Touch Screen | Touch screen | Domestic | Set | 1 |
| Wire Drive Motor and Inverter | AC asynchronous motor and inverter | Domestic | Set | 1 |
| Control Motor and Driver | Stepper motor | YAKO/Leisai/equivalent | Set | 2 |
| Electrical Components | Protector/relay/switch/knob, etc. | Delixi/Chint/Schneider or equivalent | Batch | 1 |
| Guide Wheel | Φ125 | Prominer CNC | Piece | 4 |
| Diamond Wire | Applicable wire diameter 0.15~0.45mm | Prominer CNC | Piece | 2 |
Working Principle & Configuration

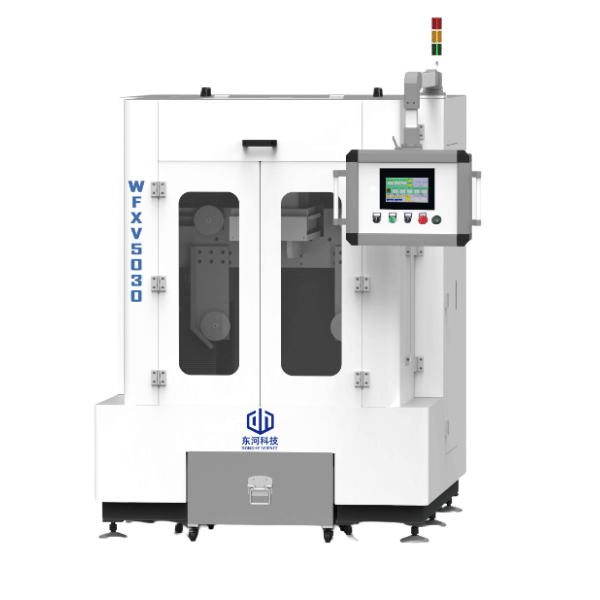

WFXV5030 Reciprocating Diamond Wire Cutting Machine
Model: WFXV5030 Brand: Prominer CNC Manufacturer: Prominer CNC Main Unit Dimensions: Approximately 1700×1450×1800mm (L×W×H) Main Material: Precision steel structure Description Main Components and Parts List WFXV5030 Wire Cutting Machine Technical Parameters
Working Principle
Diamond wire cutting is achieved through high-speed reciprocating motion driven by the guide mechanism The wire frame with wire storage drum and wire feeding system moves up and down as a whole to realize cutting Rotatable work table for crystal orientation adjustment or multi-directional automatic cutting YZ two-axis guide rail and ball screw linear motion mechanism; motion axes driven by stepper motors for positioning control PLC control system Equipped with oil lubrication system Fully enclosed protective cover Stainless steel cutting fluid circulation and filtration system
Key Features & Advantages
High Precision: 0.001mm resolution and 0.01mm repeat positioning accuracy Versatile Processing: Suitable for various hard and brittle materials including crystals, ceramics, and silicon carbide Advanced Control: PLC control system with user-friendly touchscreen interface Flexible Operation: Rotatable work table for multi-directional cutting and crystal orientation adjustment Robust Construction: Precision steel structure with high-quality components from reputable brands Complete Protection: Fully enclosed design with stainless steel cutting fluid circulation system Efficient Performance: Pneumatic wire tensioning and automated lubrication system
Support & Service
After-Sales Service
Every Prominer CNC diamond wire saw is backed by a 12-month standard warranty covering the machine frame, drive system, and CNC control unit against manufacturing defects. Extended warranty and annual service contracts are available on request.
Our technical team provides remote diagnostics within 24 hours of a reported issue and dispatches field engineers for on-site intervention in major markets. All machines ship with detailed acceptance test reports and spare-parts lists.
A lifetime supply of genuine wear components and consumables — guide wheels, wire-transport assemblies, tensioning systems, and cutting wire — is stocked at regional warehouses to keep your line running with minimal downtime.
Free firmware and control-system upgrades are included for the first two years, ensuring your equipment keeps pace with the latest slicing recipes and safety standards.
Installation & Training
Installation and commissioning are performed by certified Prominer CNC engineers, including machine leveling, axis alignment, and a full dry-run acceptance test against the agreed tolerances before sign-off.
Operator training covers safe operation, wire threading, tension setting, feed-rate optimization, and basic troubleshooting. Maintenance training covers lubrication points, guide-wheel replacement, and preventive maintenance schedules.
Training materials — operation manuals, video guides, and a illustrated spare-parts catalog — are delivered in digital form at handover, with optional on-site refresher sessions for new staff.
Operating Environment & Safety
Install the machine in a clean, level workshop with an ambient temperature of 5–40 °C and relative humidity below 85%. Avoid direct sunlight and corrosive atmospheres.
A stable three-phase power supply and a dedicated coolant / cutting-fluid circulation and filtration system are required. The working zone must be equipped with dust extraction (recommended port ≥ Φ100 mm) and adequate lighting.
Operators must wear protective eyewear and cut-resistant gloves. Loose clothing, ties, and jewelry are prohibited near the moving wire. Emergency stop buttons must remain unobstructed at all times.
Other Single Wire Saw Models
Unsure Which Model Fits Your Material?
Send us a sample – we’ll run a free test cut and recommend the optimal configuration with process parameters.
