The SW5030CLNC-C is a Single Wire Cutting machine in the Prominer CNC Single Wire Saw family. A single diamond wire – endless loop or reciprocating – for cropping, sampling and custom cuts on any hard, brittle material. With unmatched changeover flexibility for job shops, R&D labs and multi-material plants, the Single Wire Saw is the most versatile machine in the family. Benchtop (ESV-series) configurations cover laboratory sample preparation down to ultra-fine wire.
Thinnest cut
Cut thickness <0.2 mm; surface roughness <1 um, no blade marks.
High wire speed
Up to 80 m/s with manual to closed-loop servo tension control.
Maximum flexibility
Quick material and size changeover – ideal for multiple materials.
Free sample test
Run a free cutting trial on your actual material before ordering.
Technical Specifications — SW5030CLNC-C
| Model | SW5030CLNC-C |
|---|---|
| Configuration | Single Wire Cutting |
Main Components (BOM)
Working Principle & Configuration

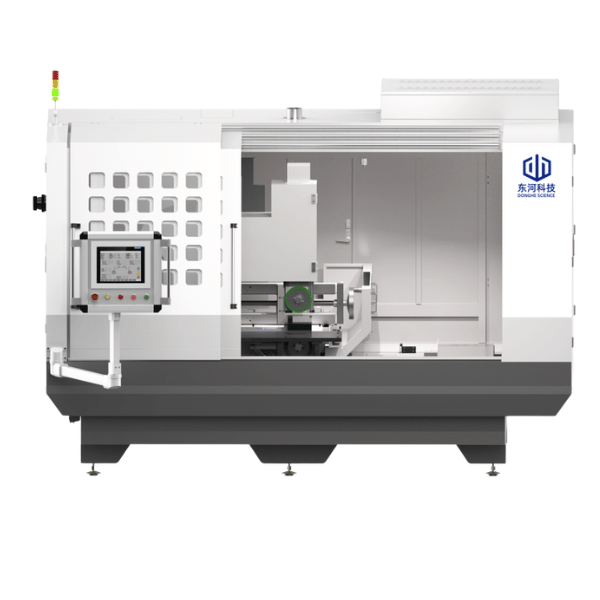

SW5030CLNC-C Single Wire Cutting Machine
Single crystal silicon Precious metals Graphite materials Silicon carbide crystals Description Main Components List Technical Parameters
Key Features
Advanced Precision Control System Proprietary Prominer CNC control algorithms Servo bus control for all axes 23-bit absolute position detection 4K position control refresh frequency Ensures high wire speed and high tension stability during diamond wire operation Versatile Wire Diameter Compatibility Wire diameter range: 0.12~0.5mm Balances cutting efficiency with minimal surface damage Ideal for applications requiring low edge chipping and surface damage Perfect for photomasks, glass substrates with tight processing margins Industrial-Grade Performance Continuous long-term operation capability Significantly reduces labor and consumable costs Suitable for complex profiling tasks (silicon carbide crystal sampling, debarking, ceramic plates) Accommodates minimal processing margins Flexible Clamping Options Standard configuration: Linear vise Optional: Rotary fixture for higher efficiency and lower consumable costs
Equipment Description and Main Configuration
Equipment Name: Multi-wire Cutting Machine Model: SW5030CLNC-C Brand: Prominer CNC Manufacturer: Prominer CNC
Working Principle
X/Y Rectangular Coordinate Configuration: Two axes that can operate independently or perform planar interpolation Control System: PLC + CNC system Diamond Wire Operation: High-speed reciprocating motion for workpiece cutting Lubrication: Oil injection lubrication system Safety: Fully enclosed protective cover Coolant System: Stainless steel cutting fluid circulation and filtration system
Support & Service
After-Sales Service
Every Prominer CNC diamond wire saw is backed by a 12-month standard warranty covering the machine frame, drive system, and CNC control unit against manufacturing defects. Extended warranty and annual service contracts are available on request.
Our technical team provides remote diagnostics within 24 hours of a reported issue and dispatches field engineers for on-site intervention in major markets. All machines ship with detailed acceptance test reports and spare-parts lists.
A lifetime supply of genuine wear components and consumables — guide wheels, wire-transport assemblies, tensioning systems, and cutting wire — is stocked at regional warehouses to keep your line running with minimal downtime.
Free firmware and control-system upgrades are included for the first two years, ensuring your equipment keeps pace with the latest slicing recipes and safety standards.
Installation & Training
Installation and commissioning are performed by certified Prominer CNC engineers, including machine leveling, axis alignment, and a full dry-run acceptance test against the agreed tolerances before sign-off.
Operator training covers safe operation, wire threading, tension setting, feed-rate optimization, and basic troubleshooting. Maintenance training covers lubrication points, guide-wheel replacement, and preventive maintenance schedules.
Training materials — operation manuals, video guides, and a illustrated spare-parts catalog — are delivered in digital form at handover, with optional on-site refresher sessions for new staff.
Operating Environment & Safety
Install the machine in a clean, level workshop with an ambient temperature of 5–40 °C and relative humidity below 85%. Avoid direct sunlight and corrosive atmospheres.
A stable three-phase power supply and a dedicated coolant / cutting-fluid circulation and filtration system are required. The working zone must be equipped with dust extraction (recommended port ≥ Φ100 mm) and adequate lighting.
Operators must wear protective eyewear and cut-resistant gloves. Loose clothing, ties, and jewelry are prohibited near the moving wire. Emergency stop buttons must remain unobstructed at all times.
Other Single Wire Saw Models
Unsure Which Model Fits Your Material?
Send us a sample – we’ll run a free test cut and recommend the optimal configuration with process parameters.
