The MW1212C is a Multi-Wire Cutting machine in the Prominer CNC Multi Wire Saw family. Multi-wire saws run 100-1000+ parallel wires to slice an entire ingot into wafers in one pass – purpose-built for high-volume silicon and sapphire wafer production. Where the single-wire saw wins on flexibility, the multi-wire saw wins decisively on throughput and per-wafer cost at scale.
Parallel slicing
100-1000+ wires cut hundreds of wafers simultaneously.
Volume economics
Lowest cost per wafer for high-volume lines.
Wafer focus
Primarily silicon and sapphire wafer mass production.
Stable geometry
Stackable cutting with rotary-table options for flat parts.
Technical Specifications — MW1212C
| Maximum Workpiece Size (W×H×D) | Approx. 120×120×150mm |
|---|---|
| Slice Thickness Range | 0.2-2mm |
| Wire Diameter | φ0.06mm – φ0.25mm |
| Wire Spool Storage | 100KM (0.1mm diameter) |
| Travel Method | Reciprocating progressive |
| Tension Range | 5-30N |
| Tension Control Method | Servo torque control |
| Maximum Reciprocating Wire Speed | 1800m/min |
| Acceleration/Deceleration Time | 5s |
| Tension Control Servo Power × Units | 2.2KW × 2 units |
| Size (OD × Length) | φ150mm × 170mm |
| Motor Power × Units | 3.7KW × 2 units |
| Table Stroke | 150mm |
| Automatic Cutting Feed Speed | 0.1-6mm/min |
| Manual Feed Speed | 0.1-6mm/s |
| Feed Position Control Accuracy | 0.01mm |
| Feed Position Display Resolution | 0.001mm |
| Feed Motor Power × Units | 0.4KW × 1 unit |
| Wire Wheel Size (Diameter × Length) | OD φ180mm × ID φ126mm × Width 110mm |
| Motor Power × Units | 4.5KW × 2 units |
| Winding Stroke | 110mm |
| Winding Motor Power × Units | 0.4KW × 2 units |
| Power | 5KW (cutting fluid cooling + motor spindle cooling) |
| Air Source Pressure | 0.6MPa |
| (Exhaust Gas) Pollution Collection Device Capacity | 2.2KW |
| Overall Weight | Approx. 2500Kg |
| Overall Dimensions (L×W×H) | Approx. 2100×1200×2200mm |
| Voltage | Three-phase five-wire, 380V/50Hz |
| Rated Power | Approx. 29KW |
| Model | MW1212C |
| Configuration | Multi-Wire Cutting |
Main Components (BOM)
Working Principle & Configuration

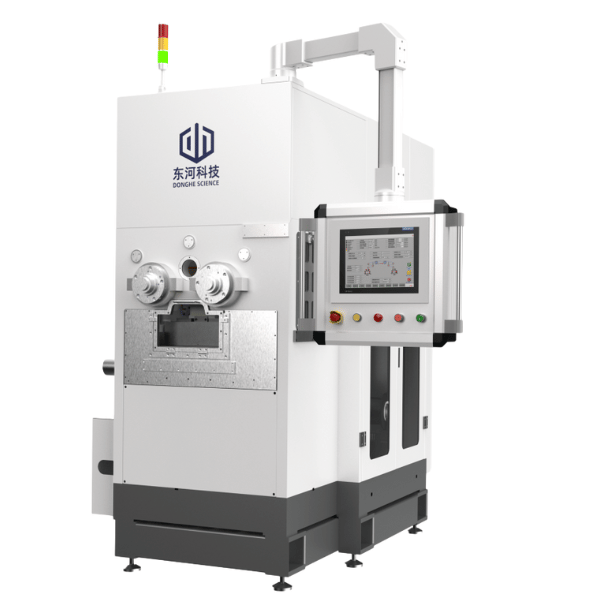

MW1212C Multi-Wire Cutting Machine
This equipment utilizes a precision control system combined with Prominer CNC’s proprietary multi-axis synchronization and high-precision real-time tension control algorithms to achieve high-speed, low-cost, and stable operation. Description Main Components and Parts List Technical Parameters
Key Features
Robust Construction – Main body made of ductile cast iron with multiple tempering cycles and high-precision machining for excellent long-term operational stability High-Performance Servo Systems – All axes use high-performance servo motors and controllers with substantial capacity redundancy to ensure high control accuracy and fast response speed Proprietary Multi-Axis Synchronization – Self-developed algorithm achieves high-precision speed synchronization High Efficiency – Maximum working wire speed of 1800m/min for high processing efficiency Optimized for Composite Materials – Detailed process design specifically for composite material slicing characteristics, improving wafer yield, surface quality, and cutting stability Dual Cutting Capability – Processing chamber designed with cooling water and dust extraction pipelines, featuring both wet and dry cutting functions; spindle sealed with compressed gas to maintain precision and stability during long-term operation Advanced Tension Control – Self-developed servo tension control system achieves high-precision, low-latency tension PID control Intelligent Wire Management – High-precision wire winding and unwinding tracking system reduces risks of wire overlap and breakage, with wire break continuation function Easy Spindle Handling – Spindle uses double-end cone positioning for convenient installation and removal User-Friendly Interface – Large touchscreen with clean, clear interface for convenient operation; cutting chamber can open from three sides for easy maintenance Premium Surface Finish – Equipment surface uses high-quality paint that resists chipping and fading Variable Speed Oil Mist Separator – Reduces water mist concentration in cutting area for better visual observation; minimizes water mist overflow damage to environment and other equipment components; conserves liquid usage Flexible Feed Modes – Multiple feed mode settings during diamond wire reciprocating direction changes, allowing selection of appropriate modes balancing processing efficiency with cutting surface quality and precision Multi-Segment Speed Control – Feed speed can be set in multiple segments based on material shape, allowing users flexible configuration to balance cutting efficiency and quality Comprehensive Cooling System – Cutting fluid cooling, spindle oil cooling, and gas cooling for spindle air sealing
Equipment Description and Main Configuration
Equipment Name: Multi-Wire Cutting Machine Model: MW1212C Brand: Prominer CNC Manufacturer: Prominer CNC Main Unit Dimensions: Approx. 2100×1200×2200mm (L×W×H) Primary Material: Ductile Cast Iron Processing Objects: Graphene composites, crystals, glass, ceramics, precious metals, and other materials Equipment Structure: Cutting chamber with cast iron frame Slicing Method: Workpiece moves up with stationary wire mesh OR workpiece moves down with stationary wire mesh
Working Principle
Diamond wire moves reciprocally; unwinding wheel releases wire, winding wheel collects wire, entering processing area through constant tension system Main roller driven by independent servo motor provides grinding and cutting power Workpiece rises into wire mesh to achieve cutting Diamond wire reciprocating cycle and single-cycle wire consumption can be set Customizable process parameters for easy recall, reducing personnel requirements and improving processing efficiency
Support & Service
After-Sales Service
Every Prominer CNC diamond wire saw is backed by a 12-month standard warranty covering the machine frame, drive system, and CNC control unit against manufacturing defects. Extended warranty and annual service contracts are available on request.
Our technical team provides remote diagnostics within 24 hours of a reported issue and dispatches field engineers for on-site intervention in major markets. All machines ship with detailed acceptance test reports and spare-parts lists.
A lifetime supply of genuine wear components and consumables — guide wheels, wire-transport assemblies, tensioning systems, and cutting wire — is stocked at regional warehouses to keep your line running with minimal downtime.
Free firmware and control-system upgrades are included for the first two years, ensuring your equipment keeps pace with the latest slicing recipes and safety standards.
Installation & Training
Installation and commissioning are performed by certified Prominer CNC engineers, including machine leveling, axis alignment, and a full dry-run acceptance test against the agreed tolerances before sign-off.
Operator training covers safe operation, wire threading, tension setting, feed-rate optimization, and basic troubleshooting. Maintenance training covers lubrication points, guide-wheel replacement, and preventive maintenance schedules.
Training materials — operation manuals, video guides, and a illustrated spare-parts catalog — are delivered in digital form at handover, with optional on-site refresher sessions for new staff.
Operating Environment & Safety
Install the machine in a clean, level workshop with an ambient temperature of 5–40 °C and relative humidity below 85%. Avoid direct sunlight and corrosive atmospheres.
A stable three-phase power supply and a dedicated coolant / cutting-fluid circulation and filtration system are required. The working zone must be equipped with dust extraction (recommended port ≥ Φ100 mm) and adequate lighting.
Operators must wear protective eyewear and cut-resistant gloves. Loose clothing, ties, and jewelry are prohibited near the moving wire. Emergency stop buttons must remain unobstructed at all times.
