The J5010H is a Vertical Internal Slicing (ID) machine in the Prominer CNC Vertical Internal Slicing Machine family. Internal-diameter (ID) blade slicers produce ultra-thin, high-accuracy wafers where wire methods reach their limit. The J5010H delivers TTV <=5 um and kerf <100 um for semiconductor and optical wafer production that demands the tightest tolerances.
ID blade slicing
Inner-diameter blade for the thinnest, most accurate wafers.
Tight TTV
Total Thickness Variation <=5 um across the wafer.
Thin kerf
Kerf loss <100 um preserves expensive boules.
Wafer range
Handles 0.1 – 2.0 mm wafer thickness.
Technical Data
Technical Specifications — J5010H
| Maximum Workpiece Cutting Diameter (mm) | Φ100 |
|---|---|
| Maximum Workpiece Cutting Length (mm) | 350 |
| Internal Circular Blade Specification (OD × ID) (mm) | Φ422 × Φ152 |
| Slice Thickness Setting Range (mm) | 0.001 – 80.000 |
| Number of Slices Setting Range | 0 – 500 |
| Slice Head Thickness Setting Range (mm) | 0.001 – 80.000 |
| Minimum Slice Thickness Feed (mm) | 0.001 |
| Screw Repeatability Positioning Accuracy (mm) | ±0.002 |
| Z-Axis Rotation Range – Left/Right: ±7°, Front/Back: ±7° | ±7° |
| Main Spindle Speed (r/min) | 0 – 2200 |
| X/Z Direction Angle Accuracy | ≤ ±3′ |
| Moving Platform Feed Speed (Cutting Speed) (mm/min) | 0.06 – 200 |
| Moving Platform Return Speed (mm/min) | 0.06 – 900 |
| Cutting Parallelism (Glass) (Φ50) (mm) | ≤ 0.005 |
| Main Motor Power (KW) | 1.5 |
| Power Supply | AC380V, 50Hz |
| Coolant Capacity (L) | 80 |
| Equipment External Dimensions (L × W × H) (mm) | 1200 × 1500 × 2400 |
| Equipment Weight (kg) | Approx. 1600 |
| Working Environment | Temperature: 20±4℃, Humidity: 40%~80%, Air Pressure: 86~106Kpa |
| Model | J5010H |
| Configuration | Vertical Internal Slicing (ID) |
Main Components (BOM)
Working Principle & Configuration

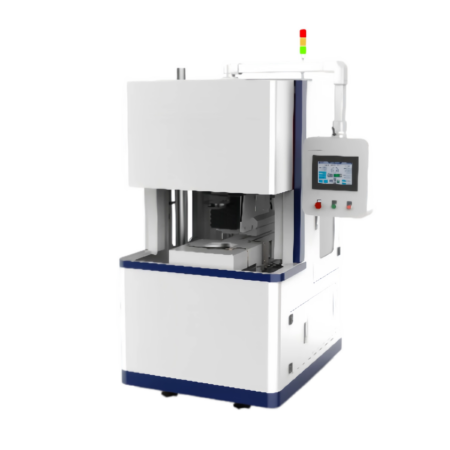

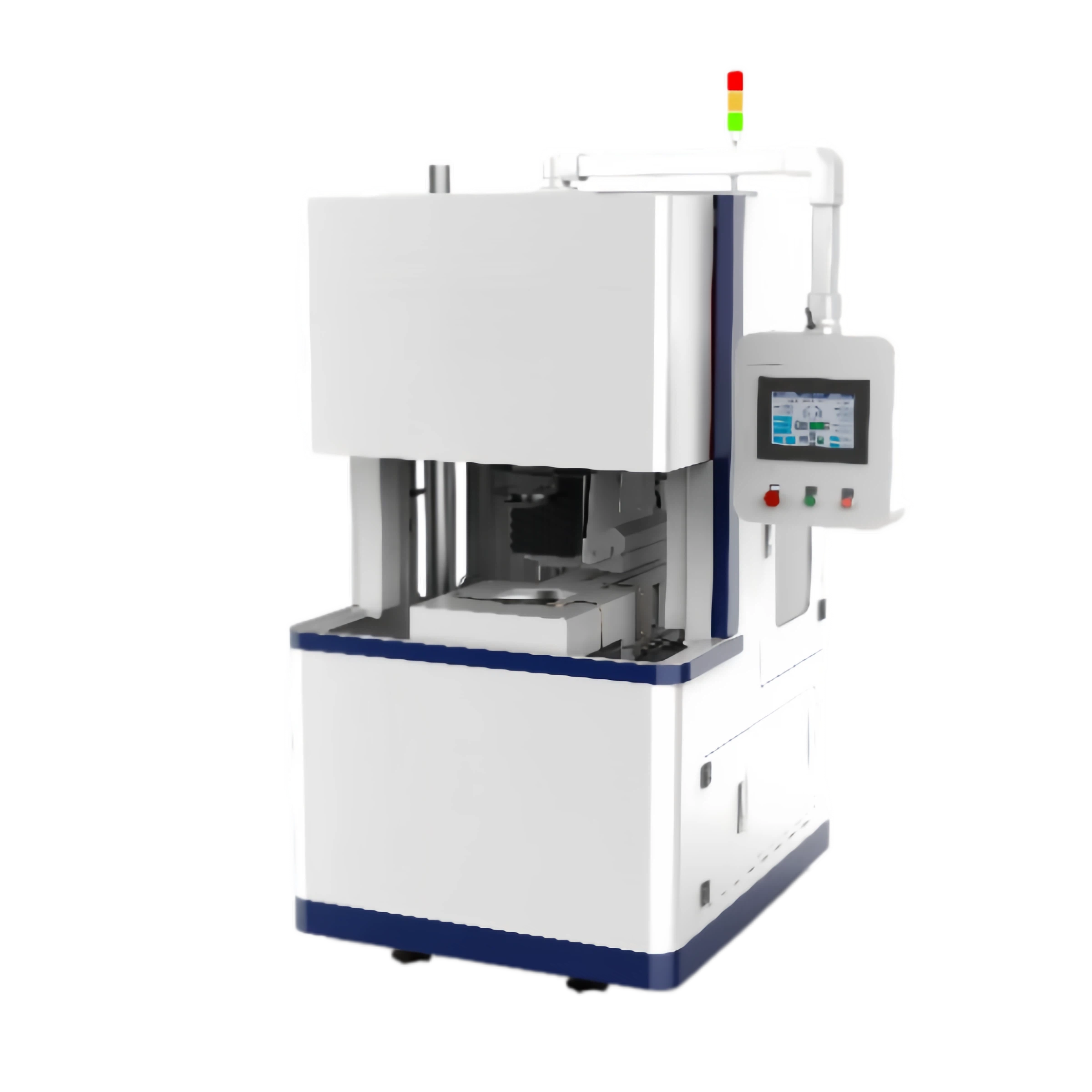

J5010H Vertical Internal Slicing Machine
The equipment consists of the following main components: machine base, spindle system, Z-axis system, X-axis system, cutting fluid system, and protective system. During operation, the workpiece is fixed to the Z-axis component. The X-axis system drives the Z-axis component to move, thereby moving the workpiece radially along the X-axis from the center of the high-speed rotating internal circular blade, achieving precise cutting of the workpiece. Description Main Components and Parts List Technical Specifications
Support & Service
After-Sales Service
Every Prominer CNC diamond wire saw is backed by a 12-month standard warranty covering the machine frame, drive system, and CNC control unit against manufacturing defects. Extended warranty and annual service contracts are available on request.
Our technical team provides remote diagnostics within 24 hours of a reported issue and dispatches field engineers for on-site intervention in major markets. All machines ship with detailed acceptance test reports and spare-parts lists.
A lifetime supply of genuine wear components and consumables — guide wheels, wire-transport assemblies, tensioning systems, and cutting wire — is stocked at regional warehouses to keep your line running with minimal downtime.
Free firmware and control-system upgrades are included for the first two years, ensuring your equipment keeps pace with the latest slicing recipes and safety standards.
Installation & Training
Installation and commissioning are performed by certified Prominer CNC engineers, including machine leveling, axis alignment, and a full dry-run acceptance test against the agreed tolerances before sign-off.
Operator training covers safe operation, wire threading, tension setting, feed-rate optimization, and basic troubleshooting. Maintenance training covers lubrication points, guide-wheel replacement, and preventive maintenance schedules.
Training materials — operation manuals, video guides, and a illustrated spare-parts catalog — are delivered in digital form at handover, with optional on-site refresher sessions for new staff.
Operating Environment & Safety
Install the machine in a clean, level workshop with an ambient temperature of 5–40 °C and relative humidity below 85%. Avoid direct sunlight and corrosive atmospheres.
A stable three-phase power supply and a dedicated coolant / cutting-fluid circulation and filtration system are required. The working zone must be equipped with dust extraction (recommended port ≥ Φ100 mm) and adequate lighting.
Operators must wear protective eyewear and cut-resistant gloves. Loose clothing, ties, and jewelry are prohibited near the moving wire. Emergency stop buttons must remain unobstructed at all times.
