The HXWB9275L-650-C is a Wire Saw Cutting machine in the Prominer CNC Endless Wire Saw Machine family. Endless (loop) wire saws run a continuous diamond- or abrasive-coated wire at high speed, delivering the thinnest kerf and finest surface finish of any wire-cutting method. Covering sand-wire, abrasive-wire and diamond-wire configurations across the HX, HXB, HXV, HXW, HXWB, HXVB, HXT and HXWV series, the Endless family handles everything from silicon ingot cropping to sapphire substrate slicing and large-format graphite blocks.
Continuous one-way cut
Eliminates reverse marks and boosts throughput vs reciprocating designs.
Minimal kerf & finish
Kerf as low as 0.2 mm; surface roughness <1 um, often no post-polish.
Multi-wire media
Configurable for sand / abrasive / diamond wire and wet or dry (HXWV) cutting.
Servo tension control
Load-cell feedback keeps wire tension steady for consistent results.
Technical Specifications — HXWB9275L-650-C
| Maximum workpiece length (mm) | 650 |
|---|---|
| Maximum workpiece width (mm) | 650 |
| Maximum workpiece height (mm) | 650 |
| Rotation diameter (mm) | 920 |
| Wire length (mm) | 4,700 |
| Wire diameter (mm) | 0.35 – 1.0 |
| Worktable X-axis (cutting feed direction) stroke (mm) | 750 |
| Wire frame Z-axis stroke (mm) | 650 |
| Maximum wire speed (m/sec) | 84 Max |
| Drive wheel diameter (mm) | 350 |
| Drive wheel groove number | 4 |
| Drive motor maximum speed (RPM) | 2,840 |
| Wire frame Z-axis minimum feed (mm) | 0.01 |
| Worktable Y-axis minimum feed (mm) | 0.01 |
| Wire frame Z-axis repeat positioning accuracy (mm) | ±0.02/300 (mm) |
| Worktable Y-axis repeat positioning accuracy (mm) | ±0.02/300 (mm) |
| Total power consumption (kW) | 4.7 |
| Power supply | AC 380V 50Hz |
| Air source (MPa) | 0.6 |
| Main unit dimensions L×W×H (mm) | Approx. 2,420 × 2,500 × 2,250 |
| Total machine weight (kg) | Approx. 3,050 |
| Model | HXWB9275L-650-C |
| Configuration | Wire Saw Cutting |
Main Components (BOM)
| Bed/Carriage | Precision steel structure | Prominer CNC | 1 set | |
|---|---|---|---|---|
| Worktable | Cast iron structure | Prominer CNC | 1 set | |
| Wire frame | Precision steel structure | Prominer CNC | 1 set | |
| Filter water tank | Stainless steel sheet metal | Prominer CNC | 1 set | |
| Protective cover | Precision sheet metal | Prominer CNC | 1 set | |
| Linear guide rail kit | Linear guide rail | Domestic | 4 sets | |
| Precision ball screw kit | Ball screw | Domestic | 2 sets | |
| Guide wheel bearing seat kit | Bearing seat assembly | Prominer CNC | 4 sets | |
| Guide wheel bearing | Precision bearing | NSK or SKF | 8 pcs | |
| Pneumatic components | Cylinders/solenoid valves/pressure regulating valves/manual valves, etc. | Airtech/equivalent brand | 1 batch | |
| PLC and expansion modules | Programmable logic controller | Mitsubishi/Huichuan/equivalent brand | 1 set | |
| Touch screen | Touch screen | Domestic | 1 set | |
| Wire driving wheel motor and inverter | AC asynchronous motor and inverter | Domestic | 1 set | |
| Control motor and driver | Stepper motor | YAKO/Leisai | 2 sets | |
| Electrical components | Circuit breakers/relays/switches/knobs, etc. | Delixi/Chint/Schneider equivalent brand | 1 batch | |
| Guide wheels | Φ350 & Φ250 | Prominer CNC | 4 pcs | |
| Diamond wire | Length 4,700mm | Prominer CNC | 2 pcs |
Working Principle & Configuration

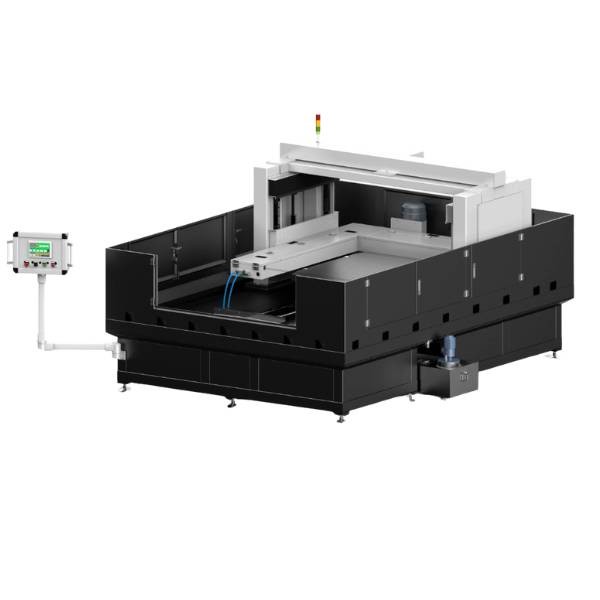

HXWB9275L-650-C Wire Saw Cutting Machine
Model: HXWB9275L-650-C Brand: Prominer CNC Manufacturer: Prominer CNC Main Dimensions: L×W×H (mm) ≈ 2,420 × 2,500 × 2,250 Main Materials: Cast iron / Precision steel structure Description Main Components and Parts List Technical Parameters – HXWB9275L-650-C
Working Principle
Diamond micro-powder electroplated circular wire moves at high speed driven by the guide mechanism to achieve material cutting XZ two-axis linear motion mechanism with guide rails and ball screws; motion axes driven by stepper motors for positioning control Worktable equipped with R-axis rotary mechanism PLC control system Equipped with oil lubrication system Fully enclosed protective cover Stainless steel coolant circulation and filtration system
Support & Service
After-Sales Service
Every Prominer CNC diamond wire saw is backed by a 12-month standard warranty covering the machine frame, drive system, and CNC control unit against manufacturing defects. Extended warranty and annual service contracts are available on request.
Our technical team provides remote diagnostics within 24 hours of a reported issue and dispatches field engineers for on-site intervention in major markets. All machines ship with detailed acceptance test reports and spare-parts lists.
A lifetime supply of genuine wear components and consumables — guide wheels, wire-transport assemblies, tensioning systems, and cutting wire — is stocked at regional warehouses to keep your line running with minimal downtime.
Free firmware and control-system upgrades are included for the first two years, ensuring your equipment keeps pace with the latest slicing recipes and safety standards.
Installation & Training
Installation and commissioning are performed by certified Prominer CNC engineers, including machine leveling, axis alignment, and a full dry-run acceptance test against the agreed tolerances before sign-off.
Operator training covers safe operation, wire threading, tension setting, feed-rate optimization, and basic troubleshooting. Maintenance training covers lubrication points, guide-wheel replacement, and preventive maintenance schedules.
Training materials — operation manuals, video guides, and a illustrated spare-parts catalog — are delivered in digital form at handover, with optional on-site refresher sessions for new staff.
Operating Environment & Safety
Install the machine in a clean, level workshop with an ambient temperature of 5–40 °C and relative humidity below 85%. Avoid direct sunlight and corrosive atmospheres.
A stable three-phase power supply and a dedicated coolant / cutting-fluid circulation and filtration system are required. The working zone must be equipped with dust extraction (recommended port ≥ Φ100 mm) and adequate lighting.
Operators must wear protective eyewear and cut-resistant gloves. Loose clothing, ties, and jewelry are prohibited near the moving wire. Emergency stop buttons must remain unobstructed at all times.
