The HXWB6560L-450-C is a Wire Saw Cutting machine in the Prominer CNC Endless Wire Saw Machine family. Endless (loop) wire saws run a continuous diamond- or abrasive-coated wire at high speed, delivering the thinnest kerf and finest surface finish of any wire-cutting method. Covering sand-wire, abrasive-wire and diamond-wire configurations across the HX, HXB, HXV, HXW, HXWB, HXVB, HXT and HXWV series, the Endless family handles everything from silicon ingot cropping to sapphire substrate slicing and large-format graphite blocks.
Continuous one-way cut
Eliminates reverse marks and boosts throughput vs reciprocating designs.
Minimal kerf & finish
Kerf as low as 0.2 mm; surface roughness <1 um, often no post-polish.
Multi-wire media
Configurable for sand / abrasive / diamond wire and wet or dry (HXWV) cutting.
Servo tension control
Load-cell feedback keeps wire tension steady for consistent results.
Technical Specifications — HXWB6560L-450-C
| Maximum workpiece length (mm) | 450 |
|---|---|
| Maximum workpiece width (mm) | 450 |
| Maximum workpiece height (mm) | 450 |
| Rotation diameter (mm) | 650 |
| Wire length (mm) | 3830 |
| Wire diameter (mm) | 0.35-1.0 |
| Worktable X-axis (cutting feed direction) stroke (mm) | 600 |
| Wire frame Z-axis stroke (mm) | 450 |
| Maximum wire speed (m/sec) | 84 Max |
| Driving wheel diameter (mm) | 350 |
| Number of driving wheel grooves | 4 |
| Maximum driving motor speed (RPM) | 2840 |
| Wire frame Z-axis minimum feed (mm) | 0.01 |
| Worktable Y-axis minimum feed (mm) | 0.01 |
| Wire frame Z-axis repeat positioning accuracy (mm) | ±0.02/300 (mm) |
| Worktable Y-axis repeat positioning accuracy (mm) | ±0.02/300 (mm) |
| Total power consumption (kW) | 4.7 |
| Power supply | AC380V 50Hz |
| Air source (MPa) | 0.6 |
| Main unit dimensions L×W×H (mm) | Approx. 2200 × 2150 × 2100 |
| Total machine weight (kg) | Approx. 2580 |
| Model | HXWB6560L-450-C |
| Configuration | Wire Saw Cutting |
Main Components (BOM)
| Bed/Carriage | Precision steel structure | Prominer CNC | Set | 1 |
|---|---|---|---|---|
| Worktable | Cast iron structure | Prominer CNC | Set | 1 |
| Wire frame | Precision steel structure | Prominer CNC | Set | 1 |
| Filter water tank | Stainless steel sheet metal | Prominer CNC | Set | 1 |
| Protective cover | Precision sheet metal | Prominer CNC | Set | 1 |
| Linear guide rail kit | Linear guide rail | Domestic | Set | 4 |
| Precision screw kit | Ball screw | Domestic | Set | 2 |
| Guide wheel bearing seat kit | Bearing seat assembly | Prominer CNC | Set | 4 |
| Guide wheel bearing | Precision bearing | NSK or SKF | Piece | 8 |
| Pneumatic components | Cylinder/solenoid valve/pressure regulating valve/manual valve, etc. | Airtech/equivalent brand | Batch | 1 |
| PLC and expansion module | Programmable logic controller | Mitsubishi/Inovance/equivalent brand | Set | 1 |
| Touch screen | Touch screen | Domestic | Set | 1 |
| Wire driving wheel motor and inverter | AC asynchronous motor and inverter | Domestic | Set | 1 |
| Control motor and driver | Stepper motor | YAKO/Leisai | Set | 2 |
| Electrical components | Protector/relay/switch/knob, etc. | Delixi/Chint/Schneider or equivalent brand | Batch | 1 |
| Guide wheel | Φ350 & Φ250 | Prominer CNC | Piece | 4 |
Working Principle & Configuration

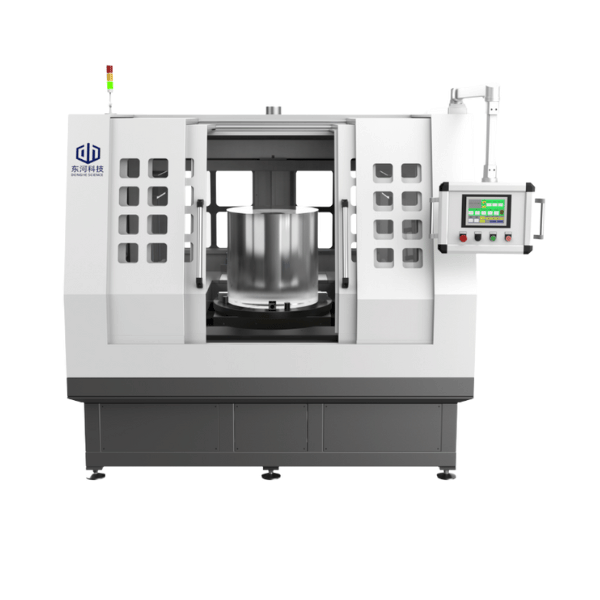

HXWB6560L-450-C Wire Saw Cutting Machine
Model: HXWB6560L-450-C Brand: Prominer CNC Manufacturer: Prominer CNC Main Unit Dimensions: L×W×H (mm) ≈ 2200 × 2150 × 2100 Main Material: Cast iron / Precision steel structure Description Main Components and Parts List Technical Parameters – HXWB6560L-450-C
Working Principle
The machine operates through the following mechanisms: Diamond micro-powder electroplated annular wire moves at high speed driven by guide mechanisms to achieve material cutting XZ two-axis guide rail ball screw linear motion mechanism; motion axes are driven by stepper motors for positioning control Worktable equipped with R-axis rotary mechanism PLC control system Oil lubrication system Fully enclosed protective cover Stainless steel cutting fluid circulation and filtration system
Key Features
High-precision cutting for hard and brittle materials PLC automated control system Fully enclosed design for safety Efficient cutting fluid circulation and filtration system High-speed wire operation up to 84 m/s Precision positioning with ±0.02mm accuracy Compact footprint with robust construction Suitable for optical, acoustic crystals, silicon carbide, ceramics and glass processing
