The HXWB50150L-50-C is a Wire Saw Cutting machine in the Prominer CNC Endless Wire Saw Machine family. Endless (loop) wire saws run a continuous diamond- or abrasive-coated wire at high speed, delivering the thinnest kerf and finest surface finish of any wire-cutting method. Covering sand-wire, abrasive-wire and diamond-wire configurations across the HX, HXB, HXV, HXW, HXWB, HXVB, HXT and HXWV series, the Endless family handles everything from silicon ingot cropping to sapphire substrate slicing and large-format graphite blocks.
Continuous one-way cut
Eliminates reverse marks and boosts throughput vs reciprocating designs.
Minimal kerf & finish
Kerf as low as 0.2 mm; surface roughness <1 um, often no post-polish.
Multi-wire media
Configurable for sand / abrasive / diamond wire and wet or dry (HXWV) cutting.
Servo tension control
Load-cell feedback keeps wire tension steady for consistent results.
Technical Specifications — HXWB50150L-50-C
| Maximum workpiece length (mm) | 1500 |
|---|---|
| Maximum workpiece width (mm) | 500 |
| Maximum workpiece height (mm) | 50 |
| Cutting wheel spacing adjustment range (mm) | 200-500 |
| Wire saw length (mm) | Approx. 6680 |
| Wire saw diameter (mm) | 0.35-1.0 |
| Worktable Y-axis travel (mm) | 1750 |
| Wire frame Z-axis travel (mm) | 200 |
| Swing angle range | ±7.5° |
| Wire saw maximum linear speed (m/sec) | 84 Max |
| Drive wheel diameter (mm) | 350 & 250 |
| Number of drive wheel grooves | 4 |
| Drive motor maximum speed (RPM) | 2840 |
| Finished product surface parallelism (mm) | ±0.3 |
| Wire frame Z-axis minimum feed (mm) | 0.01 |
| Worktable Y-axis minimum feed (mm) | 0.01 |
| Wire frame Z-axis repeat positioning accuracy (mm) | ±0.02/300 (mm) |
| Worktable Y-axis repeat positioning accuracy (mm) | ±0.02/300 (mm) |
| Overall power consumption (kW) | Approx. 4.7 |
| Power supply | AC380V 50Hz |
| Air source (MPa) | 0.6 |
| Main unit external dimensions (L×W×H) (mm) | Approx. 4400×2350×1900 |
| Overall weight (kg) | Approx. 4800 |
| Model | HXWB50150L-50-C |
| Configuration | Wire Saw Cutting |
Main Components (BOM)
| Bed/Carriage | Precision steel structure | Prominer CNC | Set | 1 |
|---|---|---|---|---|
| Worktable | Cast iron structure | Prominer CNC | Set | 1 |
| Wire frame | Precision steel structure | Prominer CNC | Set | 1 |
| Filter water tank | Stainless steel sheet metal | Prominer CNC | Set | 1 |
| Protective cover | Precision sheet metal | Prominer CNC | Set | 1 |
| Linear guide kit | Linear guide rail | Domestic | Set | 4 |
| Precision screw kit | Ball screw | Domestic | Set | 2 |
| Guide wheel bearing seat kit | Bearing seat assembly | Prominer CNC | Set | 4 |
| Guide wheel bearing | Precision bearing | NSK or SKF | Piece | 8 |
| Pneumatic components | Cylinder/solenoid valve/pressure regulating valve/manual valve, etc. | Airtech/equivalent brand | Batch | 1 |
| PLC and expansion modules | Programmable logic controller | Mitsubishi/Inovance/equivalent brand | Set | 1 |
| Touch screen | Touch screen | Domestic | Set | 1 |
| Wire main drive wheel motor and inverter | AC asynchronous motor and inverter | Domestic | Set | 1 |
| Control motor and driver | Stepper motor | YAKO/Leisai | Set | 2 |
| Electrical components | Protector/relay/switch/knob, etc. | Delixi/Chint/Schneider and equivalent brands | Batch | 1 |
| Guide wheel | Φ350 & Φ250 | Prominer CNC | Piece | 4 |
| Wire saw | Length 6680mm | Prominer CNC | Piece | 2 |
Working Principle & Configuration

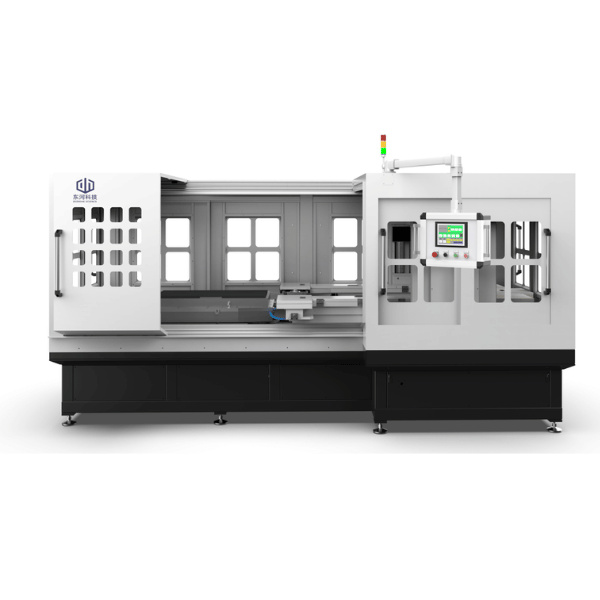

HXWB50150L-50-C Wire Saw Machine
Equipment Model: HXWB50150L-50-C Equipment Brand: Prominer CNC Manufacturer: Prominer CNC Main Unit Dimensions: L×W×H (mm) ≈ 4400×2350×1900 Main Material: Cast iron / Precision steel structure Processing Objects: Optical crystals, acoustic crystals, silicon carbide, ceramics, glass and other hard and brittle materials Description Main Components and Parts List Technical Parameters
Working Principle
Diamond powder electroplated ring wire moves at high speed under the guidance mechanism to realize material cutting Y/Z two-axis guide rail ball screw linear motion mechanism; motion axis driven by stepper motor to achieve positioning control Worktable equipped with magnetic chuck and clamping fixture for fixing workpieces; self-measuring device (dial indicator) installed on worktable, with adjustment screws at the bottom to adjust parallelism between workpiece and worktable in horizontal direction Worktable equipped with rotary mechanism R-axis turntable to realize workpiece swing cutting PLC control Equipped with oil lubrication system Fully enclosed protective cover Stainless steel cutting fluid circulation filtration system
