The HXVB2020L-C is a Vertical Bridge Wire Saw machine in the Prominer CNC Endless Wire Saw Machine family. Endless (loop) wire saws run a continuous diamond- or abrasive-coated wire at high speed, delivering the thinnest kerf and finest surface finish of any wire-cutting method. Covering sand-wire, abrasive-wire and diamond-wire configurations across the HX, HXB, HXV, HXW, HXWB, HXVB, HXT and HXWV series, the Endless family handles everything from silicon ingot cropping to sapphire substrate slicing and large-format graphite blocks.
Continuous one-way cut
Eliminates reverse marks and boosts throughput vs reciprocating designs.
Minimal kerf & finish
Kerf as low as 0.2 mm; surface roughness <1 um, often no post-polish.
Multi-wire media
Configurable for sand / abrasive / diamond wire and wet or dry (HXWV) cutting.
Servo tension control
Load-cell feedback keeps wire tension steady for consistent results.
Technical Specifications — HXVB2020L-C
| Maximum Workpiece Length (mm) | 200 |
|---|---|
| Maximum Workpiece Width (mm) | 200 |
| Maximum Workpiece Height (mm) | 200 |
| Wire Length (mm) | 2255 |
| Wire Diameter (mm) | 0.35-1.0 |
| Worktable Y-axis Stroke (mm) | 200 |
| Worktable Z-axis Stroke (mm) | 200 |
| Maximum Wire Speed (m/sec) | 58 Max |
| Drive Wheel Diameter (mm) | 250 × 3 pieces |
| Drive Wheel Groove Number | 4 |
| Drive Motor Maximum Speed (RPM) | 2840 |
| Worktable X-axis Minimum Feed (mm) | 0.01 |
| Worktable Y-axis Minimum Feed (mm) | 0.01 |
| Worktable X-axis Repeat Positioning Accuracy (mm) | ±0.02 |
| Worktable Y-axis Repeat Positioning Accuracy (mm) | ±0.02 |
| Total Power Consumption (kW) | 5 |
| Power Supply | AC220V 50Hz |
| Air Source (MPa) | 0.6 |
| Main Unit Dimensions (L×W×H) (mm) | Approx. 1090 × 1100 × 1930 |
| Total Weight (kg) | Approx. 500 |
| Model | HXVB2020L-C |
| Configuration | Vertical Bridge Wire Saw |
Main Components (BOM)
| Bed/Carriage | Precision steel structure | Prominer CNC | Set | 1 |
|---|---|---|---|---|
| Workpiece Clamping Mechanism | Precision steel structure | Prominer CNC | Set | 1 |
| Wire Frame | Precision steel structure | Prominer CNC | Set | 1 |
| Filter Water Tank | Stainless steel sheet metal | Prominer CNC | Set | 1 |
| Protective Cover | Precision sheet metal | Prominer CNC | Set | 1 |
| Linear Guide Rail Kit | Linear guide rail | High-quality domestic | Set | 4 |
| Precision Screw Kit | Ball screw | High-quality domestic | Set | 2 |
| Guide Wheel Bearing Seat Kit | Bearing seat assembly | Prominer CNC | Set | 4 |
| Guide Wheel Bearing | Precision bearing | NSK or SKF | Piece | 8 |
| Pneumatic Components | Cylinder/solenoid valve/pressure regulating valve/manual valve, etc. | Airtech/equivalent brand | Batch | 1 |
| PLC and Expansion Module | Programmable logic controller | Mitsubishi/Inovance or equivalent | Set | 1 |
| Special Controller | Wire cutting controller | High-quality domestic | Set | 1 |
| Touch Screen | Touch screen | High-quality domestic | Set | 1 |
| Wire Drive Motor and Inverter | AC precision motor and inverter | High-quality domestic | Set | 1 |
| Control Motor and Driver | Precision motor | YAKO/Leadshine/equivalent | Set | 2 |
| Electrical Components | Protector/relay/switch/knob, etc. | Delixi/Chint/Schneider or equivalent | Batch | 1 |
| Guide Wheel | Φ250 | Prominer CNC | Piece | 3 |
Working Principle & Configuration

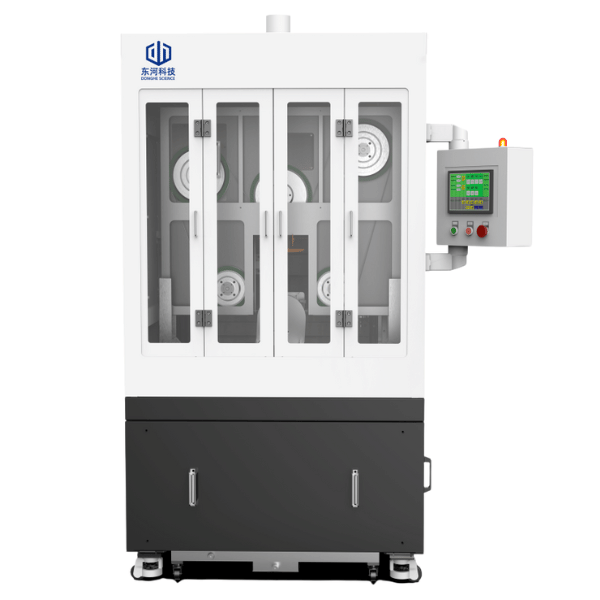

HXVB2020L-C Wire Saw Machine
Model : HXVB2020L-C Brand : Prominer CNC Manufacturer : Prominer CNC Main Dimensions : Length × Width × Height (mm) = 1090 × 1100 × 1930 Main Material : Precision steel structure Processing Objects : Optical crystals, acoustic crystals, silicon carbide, ceramics, and other hard and brittle materials Description Main Components and Parts List Technical Parameters
Working Principle
Diamond micro-powder electroplated annular wire moves at high speed under the guidance mechanism to achieve material cutting YZ two-axis guide rail ball screw linear motion mechanism; motion axis driven by precision motor for positioning control PLC control with settable dimensions for automatic continuous cutting Equipped with oil lubrication system Wet cutting and straight cutting with fully enclosed protective cover Stainless steel cutting fluid circulation and filtration system
Key Features
High Precision : Repeat positioning accuracy of ±0.02mm ensures precise cutting Versatile Application : Suitable for various hard and brittle materials including optical crystals, silicon carbide, and ceramics Automated Operation : PLC control system enables automatic continuous cutting with preset dimensions Efficient Cooling : Integrated stainless steel cutting fluid circulation and filtration system Safety Design : Fully enclosed protective cover for operator safety Quality Components : Features precision bearings (NSK/SKF), reliable pneumatic components, and high-quality guide rails
Support & Service
After-Sales Service
Every Prominer CNC diamond wire saw is backed by a 12-month standard warranty covering the machine frame, drive system, and CNC control unit against manufacturing defects. Extended warranty and annual service contracts are available on request.
Our technical team provides remote diagnostics within 24 hours of a reported issue and dispatches field engineers for on-site intervention in major markets. All machines ship with detailed acceptance test reports and spare-parts lists.
A lifetime supply of genuine wear components and consumables — guide wheels, wire-transport assemblies, tensioning systems, and cutting wire — is stocked at regional warehouses to keep your line running with minimal downtime.
Free firmware and control-system upgrades are included for the first two years, ensuring your equipment keeps pace with the latest slicing recipes and safety standards.
Installation & Training
Installation and commissioning are performed by certified Prominer CNC engineers, including machine leveling, axis alignment, and a full dry-run acceptance test against the agreed tolerances before sign-off.
Operator training covers safe operation, wire threading, tension setting, feed-rate optimization, and basic troubleshooting. Maintenance training covers lubrication points, guide-wheel replacement, and preventive maintenance schedules.
Training materials — operation manuals, video guides, and a illustrated spare-parts catalog — are delivered in digital form at handover, with optional on-site refresher sessions for new staff.
Operating Environment & Safety
Install the machine in a clean, level workshop with an ambient temperature of 5–40 °C and relative humidity below 85%. Avoid direct sunlight and corrosive atmospheres.
A stable three-phase power supply and a dedicated coolant / cutting-fluid circulation and filtration system are required. The working zone must be equipped with dust extraction (recommended port ≥ Φ100 mm) and adequate lighting.
Operators must wear protective eyewear and cut-resistant gloves. Loose clothing, ties, and jewelry are prohibited near the moving wire. Emergency stop buttons must remain unobstructed at all times.
