The HXV5040L-C is a Vertical Wire (Diamond) machine in the Prominer CNC Endless Wire Saw Machine family. Endless (loop) wire saws run a continuous diamond- or abrasive-coated wire at high speed, delivering the thinnest kerf and finest surface finish of any wire-cutting method. Covering sand-wire, abrasive-wire and diamond-wire configurations across the HX, HXB, HXV, HXW, HXWB, HXVB, HXT and HXWV series, the Endless family handles everything from silicon ingot cropping to sapphire substrate slicing and large-format graphite blocks.
Continuous one-way cut
Eliminates reverse marks and boosts throughput vs reciprocating designs.
Minimal kerf & finish
Kerf as low as 0.2 mm; surface roughness <1 um, often no post-polish.
Multi-wire media
Configurable for sand / abrasive / diamond wire and wet or dry (HXWV) cutting.
Servo tension control
Load-cell feedback keeps wire tension steady for consistent results.
Technical Specifications — HXV5040L-C
| Maximum workpiece length (mm) | 500 |
|---|---|
| Maximum workpiece width (mm) | 500 |
| Maximum workpiece height (mm) | 400 |
| Wire length (mm) | 3730 |
| Wire diameter (mm) | 0.35-1.0 |
| Worktable Y-axis travel (mm) | 500 |
| Worktable Z-axis travel (mm) | 400 |
| Maximum wire speed (m/sec) | 80 Max |
| Drive wheel diameter (mm) | 350 |
| Drive wheel groove number | 4 |
| Drive motor maximum speed (RPM) | 2840 |
| Worktable Y-axis minimum feed (mm) | 0.01 |
| Worktable Z-axis minimum feed (mm) | 0.01 |
| Worktable Y-axis repeat positioning accuracy (mm) | ±0.02/300 |
| Worktable Z-axis repeat positioning accuracy (mm) | ±0.02/300 |
| Total power consumption (kW) | 5 |
| Power supply | AC380V 50Hz |
| Air source (MPa) | 0.6 |
| Main machine dimensions (L×W×H) (mm) | Approx. 1750 × 1480 × 2450 |
| Total machine weight (kg) | Approx. 1625 |
| Model | HXV5040L-C |
| Configuration | Vertical Wire (Diamond) |
Main Components (BOM)
| Bed/Carriage | Precision steel structure | Prominer CNC | 1 set | |
|---|---|---|---|---|
| Workpiece clamping mechanism | Precision steel structure | Prominer CNC | 1 set | |
| Wire frame | Precision steel structure | Prominer CNC | 1 set | |
| Protective cover | Precision sheet metal | Prominer CNC | 1 set | |
| Linear guide rail kit | Linear guide rail | Domestic | 4 sets | |
| Precision screw kit | Ball screw | Domestic | 2 sets | |
| Guide wheel bearing seat kit | Bearing seat assembly | Prominer CNC | 4 sets | |
| Guide wheel bearing | Precision bearing | NSK or SKF | 8 pcs | |
| Pneumatic components | Cylinders/solenoid valves/pressure regulating valves/hand valves, etc. | Airtech/equivalent brand | 1 batch | |
| PLC and expansion modules | Programmable logic controller | Mitsubishi/Inovance or equivalent brand | 1 set | |
| Touch screen | Touch screen | Domestic | 1 set | |
| Wire drive motor and inverter | AC asynchronous motor and inverter | Domestic | 1 set | |
| Control motor and driver | Stepper motor | YAKO/Leisai/equivalent brand | 2 sets | |
| Electrical components | Protectors/relays/switches/knobs, etc. | Delixi/Chint/Schneider or equivalent brand | 1 batch | |
| Guide wheel | Φ350 | Prominer CNC | 3 pcs |
Working Principle & Configuration

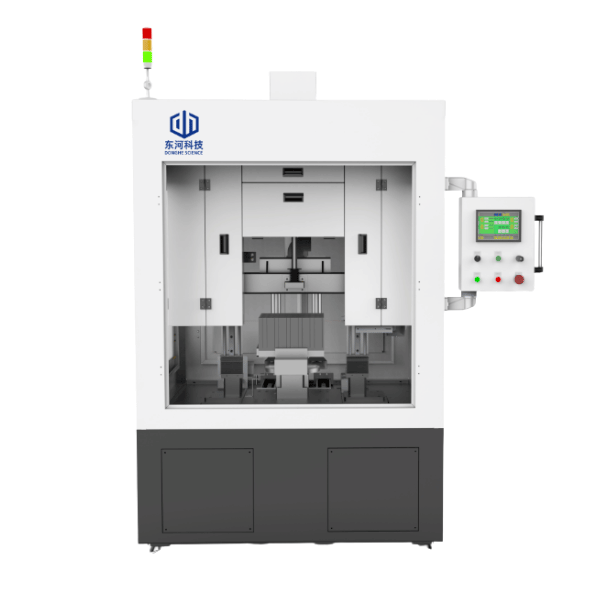

HXV5040L-C Diamond Wire Cutting Machine
Model: HXV5040L-C Brand: Prominer CNC Manufacturer: Prominer CNC Main Machine Dimensions: Length × Width × Height (mm) ≈ 1750 × 1480 × 2450 Main Material: Precision steel structure Processing Objects: Alumina ceramic green bodies, graphite and other hard and brittle materials Description Main Components and Parts List HXV5040L-C Technical Parameters
Working Principle
Diamond micro-powder electroplated ring wire achieves material cutting through high-speed movement driven by the guide mechanism YZ two-axis guide rail ball screw linear motion mechanism; motion axes are driven by stepper motors to achieve positioning control PLC control system Equipped with oil lubrication system Fully enclosed protective cover Equipped with Φ100mm dust extraction port, which can be connected to the central dust collection pipeline in the installation workshop via piping
