The HXV200100L-C is a Vertical Wire (Diamond) machine in the Prominer CNC Endless Wire Saw Machine family. Endless (loop) wire saws run a continuous diamond- or abrasive-coated wire at high speed, delivering the thinnest kerf and finest surface finish of any wire-cutting method. Covering sand-wire, abrasive-wire and diamond-wire configurations across the HX, HXB, HXV, HXW, HXWB, HXVB, HXT and HXWV series, the Endless family handles everything from silicon ingot cropping to sapphire substrate slicing and large-format graphite blocks.
Continuous one-way cut
Eliminates reverse marks and boosts throughput vs reciprocating designs.
Minimal kerf & finish
Kerf as low as 0.2 mm; surface roughness <1 um, often no post-polish.
Multi-wire media
Configurable for sand / abrasive / diamond wire and wet or dry (HXWV) cutting.
Servo tension control
Load-cell feedback keeps wire tension steady for consistent results.
Technical Specifications — HXV200100L-C
| Maximum workpiece length (mm) | 1800 |
|---|---|
| Maximum workpiece width (mm) | 800 |
| Maximum workpiece height (mm) | 800 |
| Wire length (mm) | Approx. 5445 |
| Wire diameter (mm) | 0.35-1.0 |
| Worktable Z-axis travel (mm) | 800 |
| Worktable Y-axis travel (mm) | 1800 |
| Maximum wire speed (m/s) | 84 Max |
| Drive wheel diameter (mm) | 350 |
| Number of drive wheel grooves | 4 |
| Drive motor power (kW) | 2.2 |
| Maximum drive motor speed (RPM) | 2840 |
| Total power consumption (kW) | 8.6 |
| Power supply | AC380V 50Hz |
| Air pressure (MPa) | 0.6 |
| Main unit dimensions L×W×H (mm) | 5200×1700×2800 |
| Total weight (kg) | Approx. 4000 |
| Model | HXV200100L-C |
| Configuration | Vertical Wire (Diamond) |
Main Components (BOM)
Working Principle & Configuration

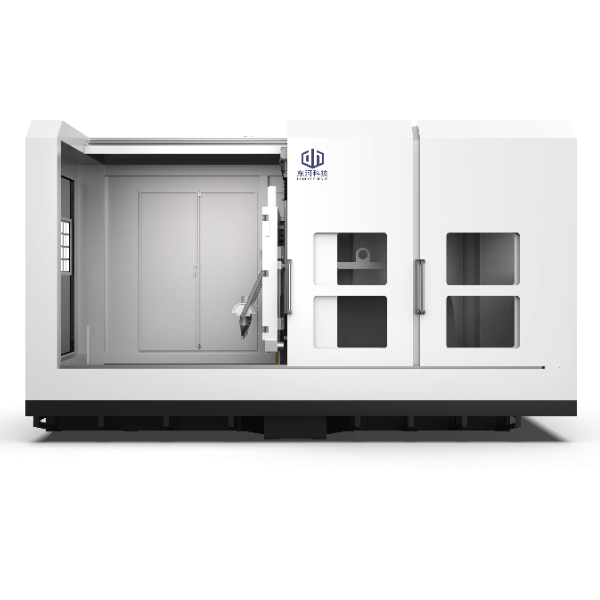

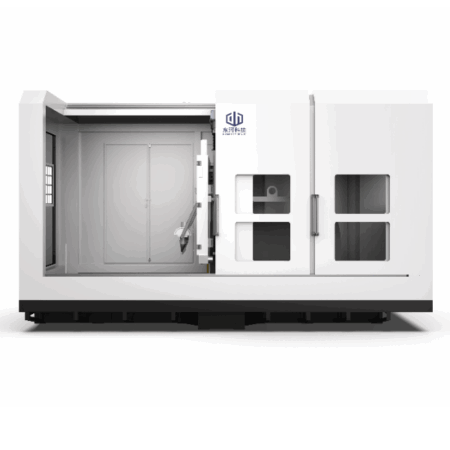

HXV200100L-C Wire Saw Cutting Machine
Description Major Components Technical Parameters Wear Parts and Consumables
Key Features
Straight-line cutting capability YZ dual-axis linear motion with guide rails and ball screws High wire speed for efficient cutting Full protection of motion mechanisms to reduce long-term failure rates Fully enclosed design to minimize dust leakage Processing range: Length 1800mm × Φ800mm
Working Principle
Diamond micro-powder electroplated endless wire moves at high speed driven by motion mechanism to cut material YZ dual-axis linear motion mechanism with guide rails and ball screws Motion axes driven by stepper motors PLC control system Lubrication system Fully enclosed design
