The HX200120LNC is a Abrasive Wire Cutting machine in the Prominer CNC Endless Wire Saw Machine family. Endless (loop) wire saws run a continuous diamond- or abrasive-coated wire at high speed, delivering the thinnest kerf and finest surface finish of any wire-cutting method. Covering sand-wire, abrasive-wire and diamond-wire configurations across the HX, HXB, HXV, HXW, HXWB, HXVB, HXT and HXWV series, the Endless family handles everything from silicon ingot cropping to sapphire substrate slicing and large-format graphite blocks.
Continuous one-way cut
Eliminates reverse marks and boosts throughput vs reciprocating designs.
Minimal kerf & finish
Kerf as low as 0.2 mm; surface roughness <1 um, often no post-polish.
Multi-wire media
Configurable for sand / abrasive / diamond wire and wet or dry (HXWV) cutting.
Servo tension control
Load-cell feedback keeps wire tension steady for consistent results.
Technical Specifications — HX200120LNC
| Maximum Workpiece Length (mm) | 2000 |
|---|---|
| Maximum Workpiece Width (mm) | 1200 |
| Maximum Workpiece Height (mm) | 1200 |
| Worktable X-axis Travel (mm) | 2000 |
| Worktable Y-axis Travel (mm) | 1200 |
| Abrasive Wire Length (mm) | Approx. 9528 |
| Abrasive Wire Diameter (mm) | 0.35-1.0 |
| Guide Wheel Specification | Diameter 350mm |
| Number of Guide Wheel Grooves | 4 |
| Abrasive Wire Linear Speed (m/sec) | 84 Max |
| Drive Motor Power (kW) | 2.2 |
| Drive Motor Maximum Speed (RPM) | 2840 |
| Worktable X-axis Minimum Feed (mm) | 0.01 |
| Worktable Y-axis Minimum Feed (mm) | 0.01 |
| Worktable X-axis Repeat Positioning Accuracy (mm) | ±0.02/300 |
| Worktable Y-axis Repeat Positioning Accuracy (mm) | ±0.02/300 |
| Special Shape Cutting Capability | Yes |
| Dust Collection Port Diameter (mm) | 100 |
| Total Machine Power Consumption (kW) | 5 |
| Power Supply (Three-phase Five-wire) | AC380V 50Hz |
| Air Source (MPa) | 0.6 |
| Equipment Overall Dimensions L×W×H (mm) | Approx. 5758 × 3052 × 2557 |
| Total Machine Weight (kg) | Approx. 8565 |
| Model | HX200120LNC |
| Configuration | Abrasive Wire Cutting |
Main Components (BOM)
| Frame/Carriage | Precision Steel Structure | Prominer CNC | Set | 1 |
|---|---|---|---|---|
| Workpiece Clamping Mechanism | Precision Steel Structure | Prominer CNC | Set | 1 |
| Wire Frame | Precision Structural Components | Prominer CNC | Set | 1 |
| Main Dust Collection Port | Sheet Metal | Prominer CNC | Set | 1 |
| Full Protective Cover | Sheet Metal | Prominer CNC | Set | 1 |
| Linear Guide Rail Kit | Linear Guide Rail | Domestic | Set | 4 |
| Precision Ball Screw Kit | Ball Screw | Domestic | Set | 2 |
| Guide Wheel Bearing Seat Kit | Bearing Seat | Prominer CNC | Set | 4 |
| Guide Wheel Bearing | Precision Bearing | NSK or SKF | Piece | 8 |
| Pneumatic Components | Cylinders/Solenoid Valves/Pressure Regulating Valves/Manual Valves, etc. | Airtech/Equivalent Brand | Batch | 1 |
| PLC and Expansion Modules | Programmable Logic Controller | Mitsubishi/Inovance/Equivalent Brand | Set | 1 |
| Touch Screen | Touch Screen | Domestic | Set | 1 |
| Abrasive Wire Drive Motor and Inverter | IP55 AC Asynchronous Motor and Inverter | Domestic | Set | 1 |
| Control Motor and Driver | Stepper Motor | YAKO/Leisai | Set | 2 |
| Electrical Components | Protectors/Relays/Switches/Knobs, etc. | Delixi/Chint/Schneider or Equivalent Brand | Batch | 1 |
| Guide Wheel | Φ350 | Prominer CNC | Piece | 4 |
| Abrasive Wire | 9528-80 | Prominer CNC | Piece | 1 |
Working Principle & Configuration

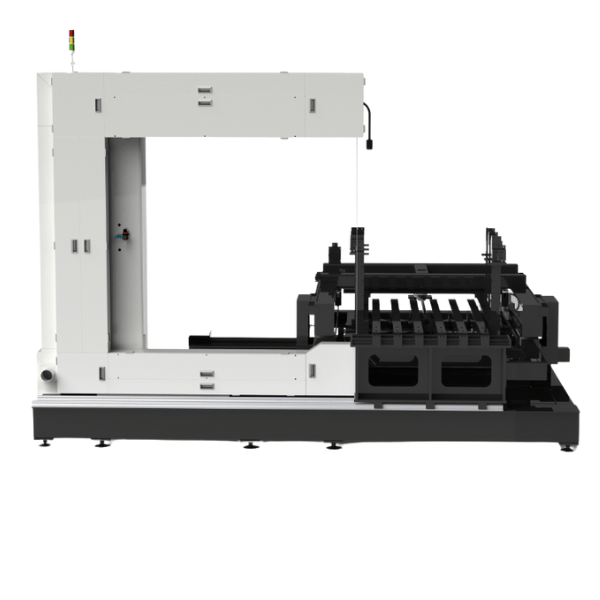

HX200120LNC Abrasive Wire Cutting Machine
SKU: hx200120lnc-abrasive-wire-cutting-machine Category: Endless wire saw machine .stk-90dee7f .stk-button{background:transparent !important;}.stk-90dee7f .stk-button:hover:after{background:transparent !important;opacity:1 !important;}:where(.stk-hover-parent:hover, .stk-hover-parent.stk–is-hovered) .stk-90dee7f .stk-button:after{background:transparent !important;opacity:1 !important;}.stk-90dee7f .stk-button:before{border-style:solid !important;} Get Instant Quote Description Main Components and Equipment List Technical Parameters
Main Configuration (Including Major Mechanisms)
Equipment Name: Loop Abrasive Wire Cutting Machine Equipment Model: HX200120LNC Equipment Brand: Prominer CNC Manufacturer: Prominer CNC Product Dimensions: L×W×H (mm) ≈ 5758 × 3052 × 2557 Main Material: Steel Structure Processing Object: Isostatic Graphite
Working Principle
Diamond powder electroplated loop abrasive wire moves at high speed driven by the wire running mechanism to cut materials XY two-axis guide rail ball screw linear motion mechanism Motion axis driven by stepper motor PLC control + NC wire cutting control system Manual oil injection lubrication system Maximum prevention of processing dust overflow Equipped with Φ100mm dust collection port, can be connected to the central dust collection pipeline in the installation workshop via pipeline Note: Individual parameters may be fine-tuned according to functional requirements at the time of ordering. Accurate parameters are subject to the documents provided with the equipment at the time of delivery.
