The HX17060LNC is a Wire Saw Cutting machine in the Prominer CNC Endless Wire Saw Machine family. Endless (loop) wire saws run a continuous diamond- or abrasive-coated wire at high speed, delivering the thinnest kerf and finest surface finish of any wire-cutting method. Covering sand-wire, abrasive-wire and diamond-wire configurations across the HX, HXB, HXV, HXW, HXWB, HXVB, HXT and HXWV series, the Endless family handles everything from silicon ingot cropping to sapphire substrate slicing and large-format graphite blocks.
Continuous one-way cut
Eliminates reverse marks and boosts throughput vs reciprocating designs.
Minimal kerf & finish
Kerf as low as 0.2 mm; surface roughness <1 um, often no post-polish.
Multi-wire media
Configurable for sand / abrasive / diamond wire and wet or dry (HXWV) cutting.
Servo tension control
Load-cell feedback keeps wire tension steady for consistent results.
Technical Specifications — HX17060LNC
| Maximum workpiece length (mm) | 1700 |
|---|---|
| Maximum workpiece width (mm) | 800 |
| Maximum workpiece height (mm) | 600 |
| Worktable X-axis stroke (mm) | 1700 |
| Worktable Y-axis stroke (mm) | 800 |
| Abrasive wire length (mm) | Approx. 7280 |
| Abrasive wire diameter (mm) | 0.35-1.0 |
| Guide wheel specification | Diameter 350mm |
| Number of guide wheel wire grooves | 4 |
| Abrasive wire linear speed (m/sec) | 84 Max |
| Drive motor power (kW) | 2.2 |
| Drive motor maximum speed (RPM) | 2840 |
| Worktable X-axis minimum feed (mm) | 0.01 |
| Worktable Y-axis minimum feed (mm) | 0.01 |
| Worktable X-axis repeat positioning accuracy (mm) | ±0.02/300 |
| Worktable Y-axis repeat positioning accuracy (mm) | ±0.02/300 |
| Special-shaped cutting capability | Yes |
| Dust extraction port diameter (mm) | 100 |
| Total machine power consumption (kW) | 5 |
| Power supply (three-phase five-wire) | AC380V 50Hz |
| Air source (MPa) | 0.6 |
| Equipment dimensions L×W×H (mm) | Approx. 4500×2400×2200 |
| Total machine weight (kg) | Approx. 3500 |
| Model | HX17060LNC |
| Configuration | Wire Saw Cutting |
Main Components (BOM)
| Frame/Carriage | Precision steel structure | Prominer CNC | Set | 1 |
|---|---|---|---|---|
| Workpiece clamping mechanism | Precision steel structure | Prominer CNC | Set | 1 |
| Wire frame | Precision structural component | Prominer CNC | Set | 1 |
| Main dust extraction port | Sheet metal | Prominer CNC | Set | 1 |
| Full protective cover | Sheet metal | Prominer CNC | Set | 1 |
| Linear guide rail kit | Linear guide rail | Domestic | Set | 4 |
| Precision ball screw kit | Ball screw | Domestic | Set | 2 |
| Guide wheel bearing seat kit | Bearing seat | Prominer CNC | Set | 4 |
| Guide wheel bearing | Precision bearing | NSK or SKF | Piece | 8 |
| Pneumatic components | Cylinder/solenoid valve/pressure regulating valve/manual valve, etc. | Airtech/equivalent brand | Batch | 1 |
| PLC and expansion module | Programmable logic controller | Mitsubishi/Inovance/equivalent brand | Set | 1 |
| Touch screen | Touch screen | Domestic | Set | 1 |
| NC special-shaped control cabinet | Independent electrical cabinet (optional CNC system) | Domestic | Set | 1 |
| Wire drive motor and inverter | IP55 AC asynchronous motor and inverter | Domestic | Set | 1 |
| Control motor and driver | Stepper motor | YAKO/Leisai | Set | 2 |
| Electrical components | Protector/relay/switch/knob, etc. | Delixi/Chint/Schneider or equivalent brand | Batch | 1 |
| Guide wheel | Φ350 | Prominer CNC | Piece | 4 |
| Abrasive wire | 7280-80 | Prominer CNC | Piece | 1 |
Working Principle & Configuration

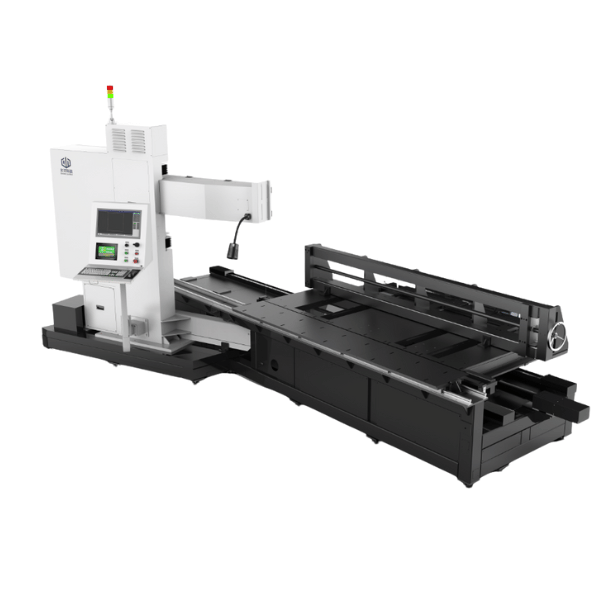

HX17060LNC Wire Saw Machine
The XY two-axis rectangular coordinate configuration enables automatic slicing functions. Equipped with a wire cutting CNC system, it can control two-axis interpolation linkage to achieve two-dimensional graphic cutting of materials. Commonly used for processing graphite insulation barrels and support feet for hot zone assembly, graphite components for outer cylinders of hydrochloric acid synthesis furnace heat exchangers, and other non-standard special-shaped graphite and carbon-carbon parts. The equipment is equipped with internal dust collection pipelines that can be connected to external central dust collection system negative pressure pipelines. Technical Parameters Description Main Components
Working Principle
Diamond micro-powder electroplated loop abrasive wire achieves material cutting through high-speed movement driven by the wire running mechanism XY two-axis guide rail ball screw linear motion mechanism Motion axes driven by stepper motors PLC control + NC wire cutting control system Manual oil lubrication system Maximum prevention of processing dust overflow Equipped with Φ100mm dust extraction port, can be connected to central dust collection pipeline in the workshop via piping Note: Individual parameters may be fine-tuned according to functional requirements at the time of ordering. Accurate parameters are subject to the documentation provided at delivery.
Support & Service
After-Sales Service
Every Prominer CNC diamond wire saw is backed by a 12-month standard warranty covering the machine frame, drive system, and CNC control unit against manufacturing defects. Extended warranty and annual service contracts are available on request.
Our technical team provides remote diagnostics within 24 hours of a reported issue and dispatches field engineers for on-site intervention in major markets. All machines ship with detailed acceptance test reports and spare-parts lists.
A lifetime supply of genuine wear components and consumables — guide wheels, wire-transport assemblies, tensioning systems, and cutting wire — is stocked at regional warehouses to keep your line running with minimal downtime.
Free firmware and control-system upgrades are included for the first two years, ensuring your equipment keeps pace with the latest slicing recipes and safety standards.
Installation & Training
Installation and commissioning are performed by certified Prominer CNC engineers, including machine leveling, axis alignment, and a full dry-run acceptance test against the agreed tolerances before sign-off.
Operator training covers safe operation, wire threading, tension setting, feed-rate optimization, and basic troubleshooting. Maintenance training covers lubrication points, guide-wheel replacement, and preventive maintenance schedules.
Training materials — operation manuals, video guides, and a illustrated spare-parts catalog — are delivered in digital form at handover, with optional on-site refresher sessions for new staff.
Operating Environment & Safety
Install the machine in a clean, level workshop with an ambient temperature of 5–40 °C and relative humidity below 85%. Avoid direct sunlight and corrosive atmospheres.
A stable three-phase power supply and a dedicated coolant / cutting-fluid circulation and filtration system are required. The working zone must be equipped with dust extraction (recommended port ≥ Φ100 mm) and adequate lighting.
Operators must wear protective eyewear and cut-resistant gloves. Loose clothing, ties, and jewelry are prohibited near the moving wire. Emergency stop buttons must remain unobstructed at all times.
