The HX1600C is a Wire Saw Cutting machine in the Prominer CNC Endless Wire Saw Machine family. Endless (loop) wire saws run a continuous diamond- or abrasive-coated wire at high speed, delivering the thinnest kerf and finest surface finish of any wire-cutting method. Covering sand-wire, abrasive-wire and diamond-wire configurations across the HX, HXB, HXV, HXW, HXWB, HXVB, HXT and HXWV series, the Endless family handles everything from silicon ingot cropping to sapphire substrate slicing and large-format graphite blocks.
Continuous one-way cut
Eliminates reverse marks and boosts throughput vs reciprocating designs.
Minimal kerf & finish
Kerf as low as 0.2 mm; surface roughness <1 um, often no post-polish.
Multi-wire media
Configurable for sand / abrasive / diamond wire and wet or dry (HXWV) cutting.
Servo tension control
Load-cell feedback keeps wire tension steady for consistent results.
Technical Specifications — HX1600C
| Model | HX1600C |
|---|---|
| Configuration | Wire Saw Cutting |
Main Components (BOM)
| Frame/Slide | Steel structure | Prominer CNC | 1 set | |
|---|---|---|---|---|
| Workpiece clamping mechanism | Precision machined parts | Prominer CNC | 1 set | |
| Wire frame | Steel structure | Prominer CNC | 1 set | |
| Main dust extraction port | Sheet metal | Prominer CNC | 1 set | |
| Wire frame protective cover | Sheet metal | Prominer CNC | 1 set | |
| Linear guide rail kit | Linear guide rail | Domestic | 4 sets | |
| Precision screw kit | Ball screw | Domestic | 2 sets | |
| Guide wheel bearing seat kit | Bearing seat | Prominer CNC | 4 sets | |
| Guide wheel bearings | Precision bearings | NSK or SKF | 8 pcs | |
| Pneumatic components | Cylinders/solenoid valves/pressure regulators/manual valves, etc. | Airtech/equivalent brand | 1 batch | |
| PLC and expansion modules | Programmable logic controller | Mitsubishi/Inovance or equivalent | 1 set | |
| Touch screen | Touch screen | Domestic | 1 set | |
| Wire drive motor and frequency converter | IP55 AC asynchronous motor and frequency converter | Domestic | 1 set | |
| Control motor and driver | Stepper motor | YAKO/Leisai | 2 sets | |
| Electrical components | Protectors/relays/switches/knobs, etc. | Delixi/Chint/Schneider or equivalent | 1 batch | |
| Guide wheels | Φ350 | Prominer CNC | 4 pcs |
Working Principle & Configuration

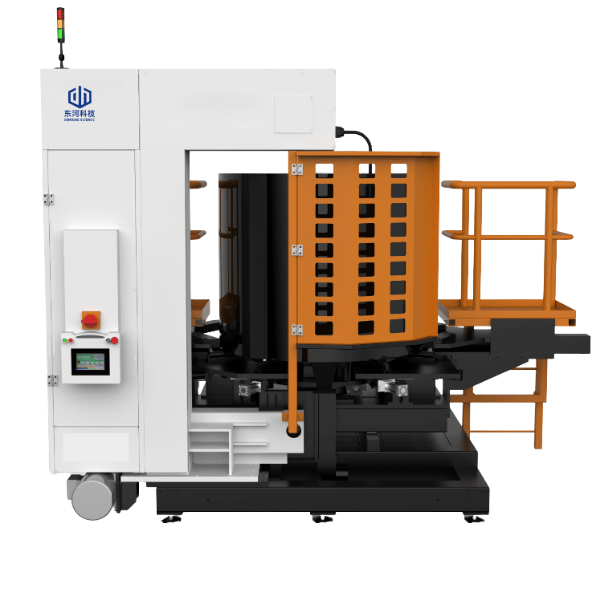

HX1600C Wire Saw Cutting Machine
Special Application : Dedicated for circular processing of integrated insulation buckets Description Major Components List Technical Parameters
Dual-Axis Configuration (Y/R Axes)
Y-axis : Overall slide movement for tool positioning. After positioning is complete, the Y-axis locks R-axis : Rotates to achieve circular cutting
Working Principle
Diamond micro-powder electroplated circular wire moves at high speed driven by the wire mechanism to cut the material Y-axis movement for tool positioning After wire threading and connection, R-axis rotates horizontally to achieve cutting Motion axes driven by stepper/servo motors PLC control + touch screen for parameter settings and motion control Automatic oil lubrication system Equipped with Φ120mm dust extraction port, can be connected to the central dust collection pipeline in the installation workshop via pipeline
